Swing Motor WSM-151
Brief Introduction:
WSM Swing Motor is an axial piston motor and planetary gearbox combination for Swing application. There are built-in parking brake, relief valve and anti-reverse valve for safety operation. It is widely used as a Swing Drive for hydraulic excavators.
|
Model |
Max Working Pressure |
Max. Output Torque |
Max. Output Speed |
Application |
|
WSM-151 |
25 MPa |
1100 N.m |
110 rpm |
20-23 Ton |
◎ Features
● Compact design with small volume.
● High efficiency Piston Motor.
● Precision inside gear parts.
● Smooth transmission and low noise.
● Excellent performance and long durability.
● Integrated with Relief Valve.
● Parking brake inside.
● With Conterbalance Valve.
● Customised flange pattern as required.
● Specifications and Dimensions are the same as Eaton JMF Slew Drive.
◎ Specifications
|
Model: |
WSM-151 |
|
Input Flow |
225 L/min |
|
Displacement |
151 ml/r |
|
Max Working Pressure |
25 MPa |
|
Gear Ratio |
17 |
|
Theoretical Output Torque |
11000 N.m |
|
Theoretical Output Speed |
110 r/min |
|
Weight |
240 kg |
|
Application |
20~23 Ton |

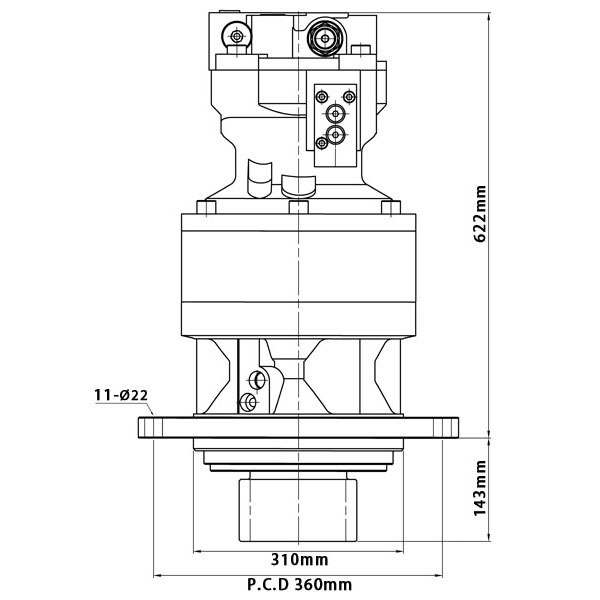

Dimensions
◎ Our Advantage
1, More than 30 years in Fluid Power industry.
2, Improved structure based on famous brands.
3, OEM Motor supplier in China domestic machinery manufactures.
4, Parts are precisionly machined Automatic Producing Line.
5, Real testing for every motors before packing.
6, One full year warranty.
7, Professional international service team to help you.
