Original Factory Trade Assurance Replace Rexroth Hydraulic Vane Pump A10VG45 medium pump closed loop pump

Closed Loop Pump for Mobile applications.

Medium- high pressure pump.

Nominal pressure 350 bar

Maximum pressure 400 bar

Integrated boost pump.

Various control method.


Product Detail

Product Tags

Our organization puts emphasis to the administration, the introduction of talented staff, and the construction of team building, trying hard to boost the quality and liability consciousness of workers users. Our firm successfully attained IS9001 Certification and European CE Certification of Original Factory Trade Assurance Replace Rexroth Hydraulic Vane Pump A10VG45 medium pump closed loop pump, Our main objectives are to provide our customers worldwide with good quality, competitive price, satisfied delivery and excellent services.
Our organization puts emphasis to the administration, the introduction of talented staff, and the construction of team building, trying hard to boost the quality and liability consciousness of workers users. Our firm successfully attained IS9001 Certification and European CE Certification of rexroth closed loop mobile application pump, Customer’s satisfaction is always our quest, creating value for customers is always our duty, a long term mutual-beneficial business relationship is what we are doing for. We are an absolutely reliable partner for you in China. Of course, other services, like consulting, can be offered too.
A10VG series pump is a widely used closed loop pump for medium to high pressure circumstances. The high pressure could be made 400 bar to 420 bar. It is widely used in Agricultural machinery, Construction machinery, Aerial Lift, and other special vehicles.

Features:

Swashplate design pump for static hydraulic transmission.

Integrated boost pump for boost and pilot oil supply

Flow direction changes when the swashplate is moved through the neutral position

Flow is proportional changed as the input speed and displacement for various speed.

High-pressure relief valves with integrated boost function

Boost-pressure relief valve

Standard pressure cut-off valve.

d1

Parameters

Size

45

Displacement

 variable pump

Vg max

46 cc/r

 boost pump

 p = 20 bar

Vg sp

13.8 cc/r

Speed

 maximum at Vg max

n nom

3300 rpm

 limited, maximum

n max.l

3550 rpm

 intermittent, maximum

n max.i

3800 rpm

 minimum

n min

500 rpm

Flow

 at n nom and Vg max

q v

152 L/min

Power

 at n nom and Vg max

 Δp = 300 bar

P max

76 kW

Torque

 at Vg max

 Δp = 300 bar

T max

220 Nm

 Δp = 100 bar

T

73 Nm

Case volume

V

0.75 L

Weight approx.

 (without through drive)

m

27 Kg

Ordering Code

A10VG code1 A10VG code2

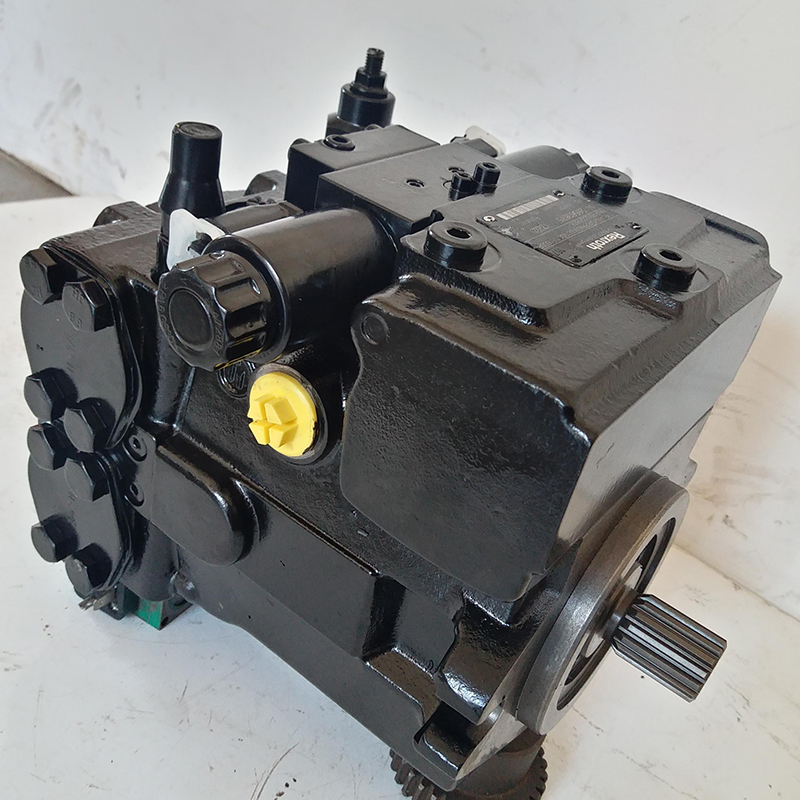

d3

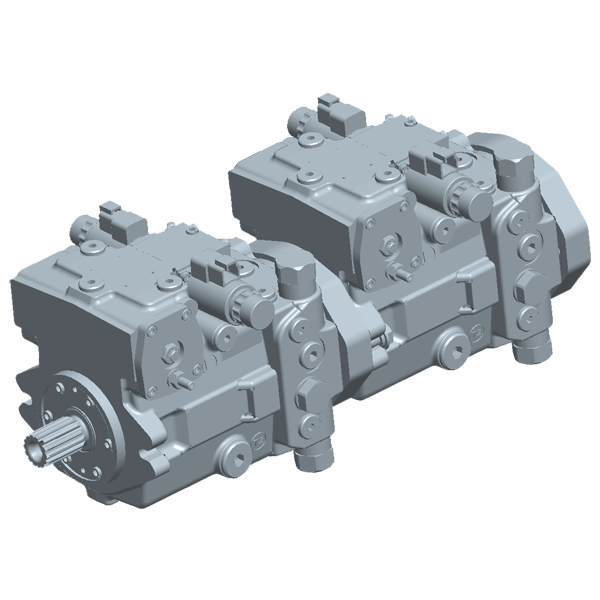

A10VG45 double
