OEM/ODM Factory Brevini Travel Motor - Final Drive WBM-702CT – WEITAI Detail:

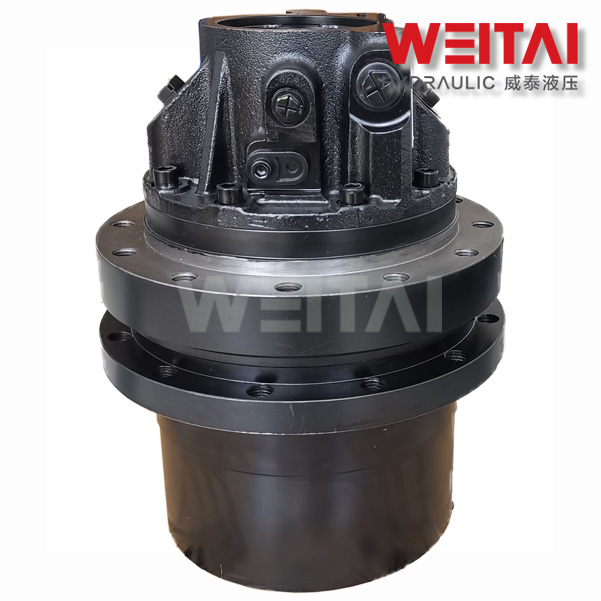

WBM-702CT Track Drive is our new designed Final Drive which integrated with high efficiency hydraulic motor and high strength planetary gearbox. It is widely used for Skid Steer Loaders, Compact Track Loaders, Pavers, Dozers, Soil Compactors and other Crawler Equipment.

Model

Max Working Pressure

Max. Output Torque

Max. Output Speed

Speed

Oil Port

Application

WBM-702CT

27.5 MPa

3500 N.m

100 rpm

2-speed

5 ports

2.5-3.5 Ton

Key Features:
Designed for closed hydraulic circuit.
Build-in flushing valve.
Axial Piston Motor with high efficiency.
Double speed Motor with large ration for widely usage.
Build-in parking brake for safety.
Extremely compact volume and light weight.
Reliable quality and high durability.
Travel smoothly with very low noisy.
Automatic speed changing function is optional.

trh

◎ Connection Dimensions

Frame orientation diameter

210mm

Frame bolt pattern

8-M16

Frame holes P.C.D.

240mm

Sprocket orientation diameter

210mm

Sprocket bolt pattern

12-M16

Sprocket holes P.C.D.

245mm

Flange distance

70mm

Approximate weight

60kg

● Both flange holes patterns can be made as required.

WBM-700 series Track Drive is our new designed Travel Motor for closed loop applications. It is mainly used in Skid Steer Loaders and Compact Track Loaders. These Final Drives are with the same specifications and connecting dimensions with Bonfiglioli 700 series Track Drives. We are also making the Track Drives which are interchangeable with the main brands such as Sauer-Danfoss BMVT, Nabtesco TH-VB, DANA CTL Spicer Torque-hub, etc. We can also design the Motor size and connection as your OEM Final Drives.

yuk

◎ Widely Applications

WBM Track Motors can be suitable for most of the Track Loaders in the market. Such as BOBCAT, CASE, CATERPILLAR, JOHN DEERE, DITCH WITCH, EUROCOMACH, GEHL, IHI, JCB, KOMATSU, MANITOU, MUSTANG, NEW HOLLAND, TAKEUCHI, TEREX, TORO, VERMEER, VOLVO, WACKER NEUSON, YANMAR and other main brand Compact Loaders.


Product detail pictures:

OEM/ODM Factory Brevini Travel Motor - Final Drive WBM-702CT – WEITAI detail pictures
