1. Introduction to Hydraulic Final Drive Motor

The hydraulic final drive motor, as a key component in the hydraulic system, occupies a pivotal position in the industrial field. It is a device that converts hydraulic energy into mechanical energy and drives the internal components to operate through the pressure of the liquid, thereby outputting torque and speed.

In many industrial fields, the hydraulic final drive motor plays an irreplaceable role. For example, in the field of engineering machinery, it provides powerful power output for large equipment such as excavators and loaders, enabling the equipment to efficiently complete various heavy work tasks. In terms of ship driving, a hydraulic final drive motor can ensure the stable driving of ships under different sea conditions and provide reliable power support for the propulsion system of ships. In addition, in the fields of metallurgy, mining machinery, etc., hydraulic final drive motors are also widely used in various large equipment to help the smooth progress of industrial production.

According to statistics, in the field of engineering machinery, the market demand for hydraulic final drive motors has increased year by year. With the continuous advancement of engineering construction and the improvement of the degree of equipment automation, the performance requirements for hydraulic final drive motors are also getting higher and higher. It not only needs to have high energy conversion efficiency but also needs to have reliable stability and durability to adapt to complex working environments.

The reason why hydraulic final drive motors are so important in the industrial field is mainly due to their unique performance advantages. First, it has a strong torque output capacity and can meet the power requirements of various large equipment. Secondly, hydraulic transmission has the advantages of good stability and fast response speed, which enables the hydraulic final drive motor to achieve precise control during the working process. In addition, the hydraulic final drive motor also has the characteristics of a compact structure, small size, lightweight, etc., which is easy to install and maintain.

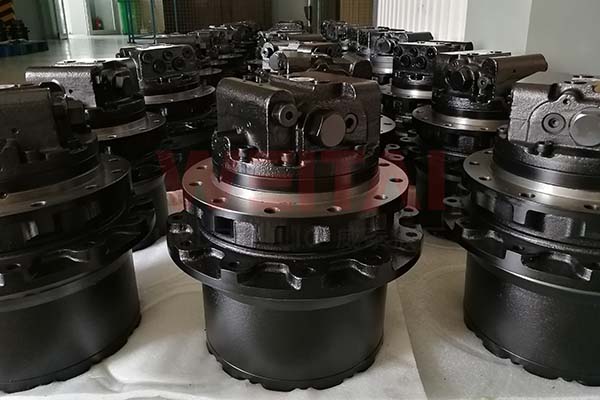

WEITAI hydraulic final drive motor

2. Types and Application Scenarios of Hydraulic Final Drive Motors

(I) Product display of different brands

Caterpillar’s hydraulic final drive motors are known for their high quality and reliability. Its products have strong load capacity and can operate stably in harsh working environments. For example, it is suitable for various heavy engineering machinery, such as large excavators and other equipment. Caterpillar’s hydraulic final drive motors focus on structural firmness and durability in design and can withstand high-intensity working pressure. According to statistics, in some large-scale mining projects, the service life of Caterpillar’s hydraulic final drive motors can be as long as several years, greatly reducing the maintenance cost of equipment.

Kobelco’s hydraulic final drive motors have attracted widespread attention for their efficient performance and precise control. The brand’s products perform well in terms of speed regulation range and can meet the speed requirements in different working scenarios. At the same time, Kobelco’s hydraulic final drive motor responds quickly in starting and braking, providing great convenience for the operation of the equipment. In the field of construction, Kobelco’s hydraulic final drive motor is widely used in equipment such as cranes and concrete pump trucks, providing a strong guarantee for the smooth progress of the project.

WEITAI’s hydraulic final drive motor has certain advantages in terms of cost performance. Its products are relatively affordable while ensuring performance. WEITAI’s hydraulic final drive motor has good adaptability and can be matched with different types of equipment. In some small and medium-sized engineering projects, WEITAI’s hydraulic final drive motor has been widely used.

(II) Wide range of application fields

In the construction field, hydraulic final drive motors are widely used in various construction equipment. For example, concrete mixers use hydraulic final drive motors to rotate the mixing blades to ensure uniform mixing of concrete. In cranes, hydraulic final drive motors provide power for the lifting and rotation of the boom, allowing cranes to efficiently complete the lifting task of heavy objects. In addition, in bulldozers, road rollers, and other equipment, hydraulic final drive motors also play an important role, providing power support for the travel of equipment and the operation of working parts.

In the field of machinery, hydraulic final drive motors are also widely used. In machine tool equipment, hydraulic final drive motors can achieve precise movement of the workbench and rapid feeding of the tool, improving processing accuracy and efficiency. In injection molding machines, hydraulic final drive motors provide power for the rotation of the injection screw and the opening and closing of the mold, ensuring the high-quality production of plastic products. In textile machinery, hydraulic final drive motors are used to drive the operation of various textile parts to achieve efficient textile production.

3. Advantages of Hydraulic Final Drive Motors

(I) Powerful power output

Hydraulic final drive motors are known for their high torque output and can provide efficient and stable power for various heavy machinery. According to relevant data, hydraulic final drive motors can also generate huge torque at low speeds, which is crucial for equipment that needs to move heavy loads. For example, in excavator operations, hydraulic final drive motors can easily cope with hard soil and rocks, providing powerful power for the excavator arm, and enabling it to complete excavation tasks quickly and efficiently. In addition, the power output of the hydraulic final drive motor is relatively stable and will not fluctuate greatly due to changes in load, ensuring the smooth operation of the equipment.

(II) Reliable performance

The hydraulic final drive motor has shown extremely high reliability and durability in different working environments. First, the hydraulic system uses incompressible hydraulic oil to transmit power, ensuring stable power output. Compared with other transmission methods, the almost incompressible nature of hydraulic oil enables the hydraulic final drive motor to maintain stable performance under various harsh working conditions. Secondly, the hydraulic final drive motor usually adopts strong materials and structural design, which can withstand high-intensity working pressure and impact load. In some extreme environments, such as high temperature, high humidity, or high dust workplaces, the hydraulic final drive motor can still operate reliably. Furthermore, many hydraulic final drive motors have good overload protection functions. When the load exceeds a certain limit, the protection mechanism can be automatically activated to prevent the motor from being damaged.

(III) Easy maintenance and maintenance

The maintenance of the hydraulic final drive motor is relatively simple, which reduces the cost of use. On the one hand, the structure of the hydraulic final drive motor is relatively simple, mainly consisting of a hydraulic pump, a motor body, and some connecting parts. This enables maintenance personnel to quickly troubleshoot and repair. On the other hand, the maintenance cycle of hydraulic final drive motors is relatively long. For example, regular replacement of hydraulic oil is one of the important links in the maintenance of hydraulic final drive motors, but the replacement cycle of hydraulic oil is usually long, generally thousands of hours or even longer. In addition, some advanced hydraulic final drive motors are also equipped with intelligent monitoring systems that can monitor the operating status of the motor in real time and warn of potential failures in advance, which provides great convenience for maintenance.

4. Common Problems and Solutions

(I) Fault judgment method

The following methods can be used to determine whether the hydraulic final drive motor has a fault:

Observe the appearance: Regular visual inspection is essential. Check for any signs of leaks, damaged hoses, or loose connections. Resolve these problems promptly to prevent further damage.

Check the fluid: Make sure the hydraulic oil is at the correct level and clean. Contamination or low fluid levels may cause damage to the motor. In addition, check the fluid temperature and pressure because they can affect the performance of the motor. For example, when the hydraulic oil temperature is too high, it may be a sign of a fault in the hydraulic final drive motor. Generally speaking, the normal operating temperature should be within a certain range. If it exceeds this range, further inspection is required.

Vibration analysis: Monitor abnormal vibrations during motor operation, as excessive vibrations may indicate problems with the motor or its installation. According to statistics, when the vibration amplitude exceeds a certain value, there is a high probability that the hydraulic final drive motor has failed.

Sound judgment: Abnormal sound may be caused by poor valve core operation, air remaining in the circuit or valve core, etc. At this time, it is necessary to extract the air or perform corresponding repairs.

Performance degradation: If the speed of the hydraulic final drive motor decreases and the output torque decreases, it may be due to the following reasons: insufficient inflow of oil, wear, or damage to the slipper, pump liner, and valve plate. At this time, it is necessary to check the discharge volume of the pump, that is, the oil pressure path to the motor, and check, repair, or replace parts.

(II) Repair and replacement strategy

When facing a fault, the following factors need to be considered when choosing repair or replacement:

Fault severity: If it is a minor fault, such as loose bolts or pins, cracked O-rings, etc., you can choose to repair it. However, if it is a serious fault, such as the burning of the sliding part, or the pin teeth in the stator body exceeding a certain limit, increasing the internal gap between the stator body and the matching, you may need to consider replacement.

Cost factors: Repair costs usually include labor costs and the cost of replacing parts. If the repair cost is low and can restore the performance of the hydraulic final drive motor, then repair is a good choice. However, if the repair cost is high, even close to or exceeding the cost of purchasing a new device, then replacement may be more economical.

Time factors: Repairs may take a certain amount of time, which may cause equipment downtime and affect production schedules. If time is urgent and the equipment needs to be restored as soon as possible, then replacement may be a better choice.

Equipment life: If the hydraulic final drive motor has been used for a long time and is close to or exceeds its expected life, then even a minor failure may need to be considered for replacement to avoid more problems in the future.

Spare parts inventory: If the necessary spare parts inventory, including seals, filters, and other worn parts, then repairs may be more convenient and faster. Otherwise, you may need to wait for the procurement and transportation of spare parts, which will increase the repair time.

Equipment importance: For critical equipment, such as in mission-critical applications, spare hydraulic motors can help minimize downtime during unexpected failures. Make sure these spare parts are properly maintained and tested regularly. If the hydraulic final drive motor plays an important role in critical equipment, then replacement may be a safer choice to ensure the reliability and stability of the equipment.

5. Future Development Trends

With the continuous advancement of science and technology, hydraulic final drive motors are also developing in the direction of being more efficient, intelligent, and environmentally friendly.

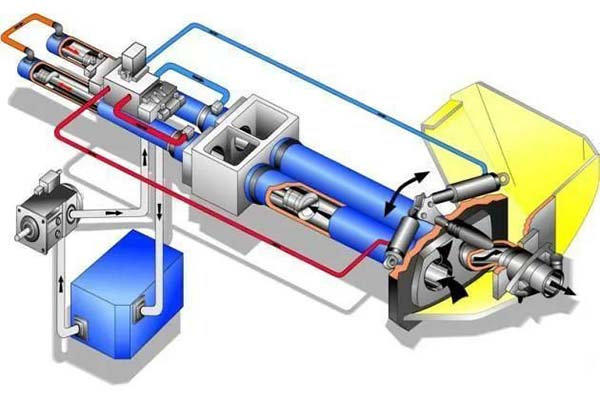

WEITAI hydraulic final drive motor structure

In terms of technological innovation, hydraulic final drive motors will continue to improve energy conversion efficiency. By optimizing design and adopting advanced materials, energy loss can be reduced and output power can be increased. For example, new hydraulic pumps and motor combinations can achieve higher pressure and flow, thereby improving the working efficiency of equipment. According to relevant research, the energy conversion efficiency of hydraulic final drive motors is expected to increase by 10% to 20% in the future.

Intelligence is also an important development direction for hydraulic final drive motors. Future hydraulic final drive motors will be equipped with intelligent sensors and control systems that can monitor the operating status of equipment in real-time, predict potential failures, and perform self-adjustment and optimization. For example, sensors monitor parameters such as temperature, pressure, and flow of hydraulic oil. When abnormalities are found, the working parameters are automatically adjusted to ensure the safe operation of the equipment. At the same time, intelligent control systems can also realize remote monitoring and operation, improving the management efficiency of equipment.

The continuous improvement of environmental protection requirements will also promote the development of hydraulic final drive motors. Future hydraulic final drive motors will pay more attention to reducing leakage and noise. The use of new sealing materials and technologies can effectively reduce the leakage of hydraulic oil and reduce pollution to the environment. At the same time, by optimizing the design and adopting noise reduction technology, the noise level of the hydraulic final drive motor can be reduced and the comfort of the working environment can be improved.

In terms of application areas, with the continuous advancement of industrial automation, hydraulic final drive motors will be used in more fields. For example, in the field of intelligent manufacturing, hydraulic final drive motors can provide efficient and precise power support for automated production lines. In the field of new energy, hydraulic final drive motors can be used in equipment such as wind power generation and solar power generation, contributing to the development and utilization of renewable energy.

6. Conclusion

In short, the hydraulic final drive motor has broad development prospects in the future. With the continuous advancement of technology, it will continue to improve performance, achieve intelligence and environmental protection, and make greater contributions to industrial production and social development.
