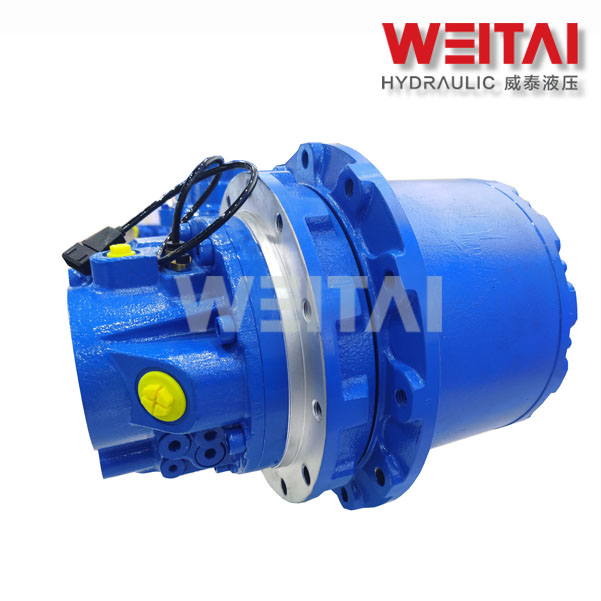

Cheap PriceList for Nabtesco Travel Motor - Final Drive WBM-705XT – WEITAI Detail:

WBM-700CT series Track Drive is our new designed Final Drive which integrated with high efficiency hydraulic motor and high strength planetary gearbox. It is widely used for Skid Steer Loaders, Compact Track Loaders, Pavers, Dozers, Soil Compactors and other Crawler Equipment.

Model	Rated Working Pressure	Max. Output Torque	Max. Output Speed	Speed switching	Oil Port	Application
WBM-705XT	27.5 MPa	10500 N.m	50 rpm	2-speed	5 ports	5-7 Ton

Key Features:
Designed for closed hydraulic circuit.
Build-in flushing valve.
Axial Piston Motor with high efficiency.
Double speed Motor with large ration for widely usage.
Build-in parking brake for safety.
Extremely compact volume and light weight.
Reliable quality and high durability.
Travel smoothly with very low noisy.
Automatic speed changing function is optional.

tyj

◎ Connection Dimensions

Frame orientation diameter	270mm
Frame bolt pattern	12-M16
Frame holes P.C.D.	300mm
Sprocket orientation diameter	250mm
Sprocket bolt pattern	12-M16
Sprocket holes P.C.D.	285mm
Flange distance	85mm
Approximate weight	90kg

● Both flange holes patterns can be made as required.

WBM-700 series Track Drive is our new designed Travel Motor for closed loop applications. It is mainly used in Skid Steer Loaders and Compact Track Loaders. These Final Drives are with the same specifications and connecting dimensions with Bonfiglioli 700 series Track Drives. We are also making the Track Drives which are interchangeable with the main brands such as Sauer-Danfoss BMVT, Nabtesco TH-VB, DANA CTL Spicer Torque-hub, etc. We can also design the Motor size and connection as your OEM Final Drives.

yuk

◎ Widely Applications

WBM Track Motors can be suitable for most of the Track Loaders in the market. Such as BOBCAT, CASE, CATERPILLAR, JOHN DEERE, DITCH WITCH, EUROCOMACH, GEHL, IHI, JCB, KOMATSU, MANITOU, MUSTANG, NEW HOLLAND, TAKEUCHI, TEREX, TORO, VERMEER, VOLVO, WACKER NEUSON, YANMAR and other main brand Compact Loaders.
