A6VM55 Axial Piston Variable Motor
A6VM series Motor is a widely used open and closed loop variable motor for high pressure circumstances. The high pressure could be made 450 bar.
It is widely used in Agricultural machinery, Construction machinery, Aerial Lift, and other special vehicles.
Features:
Typical Bent-axis design Motor.
Standard high pressure motor for widely usages.
Robust motor with long service life.
Approved for very high rotational speeds.
High control range (can be swiveled to zero).
High torque.
Variety of controls for different applications.
Optionally with flushing and boost-pressure valve mounted.
Optionally with mounted high-pressure counterbalance valve.
Optionally with Speed transducer.
Optionally with Pressure sensor.

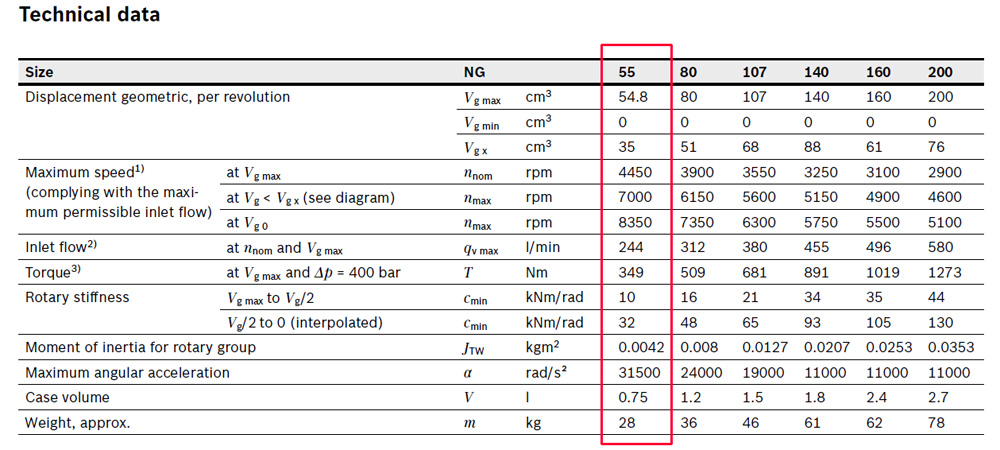

Parameters

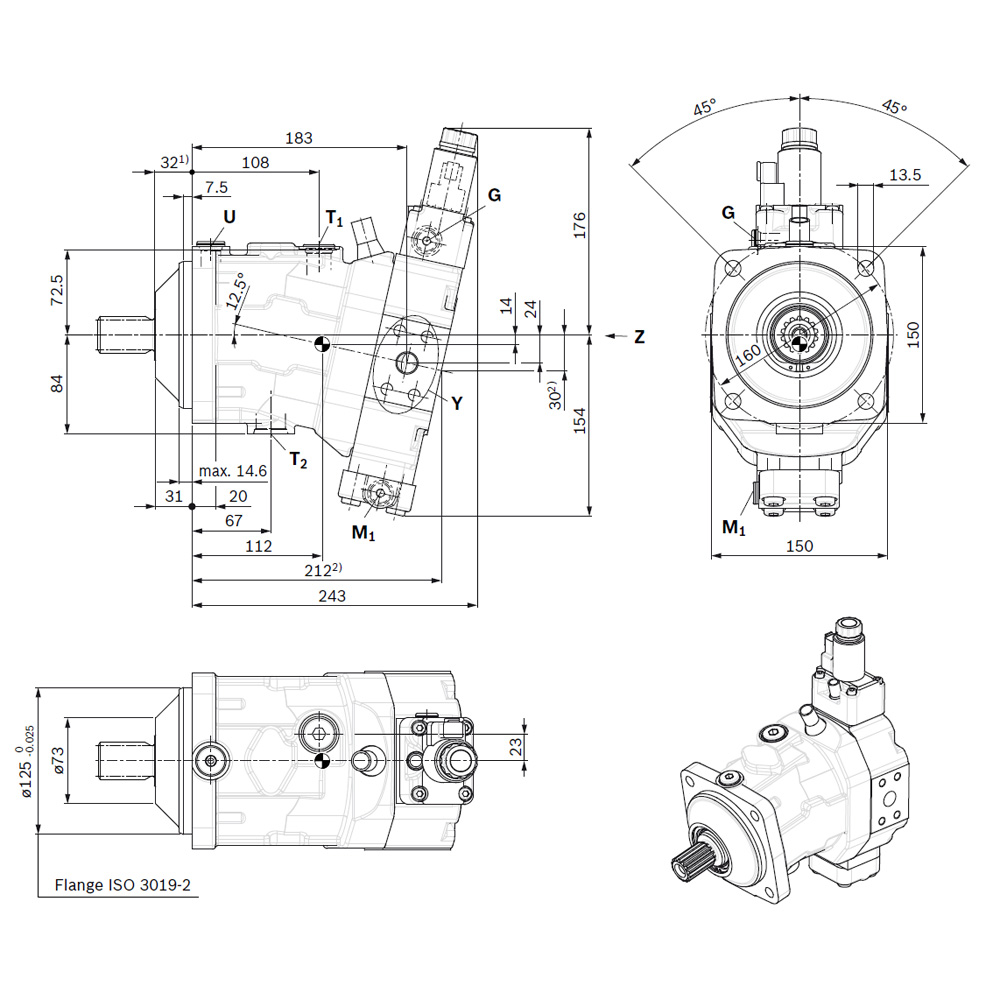

Connection dimensions (Interchangeable with Rexroth A6VM55 Motor).
