A2FE Axial Fixed Piston Motor

All-purpose high pressure pump

Size 5,10, 12, 16, 23, 28, 32, 45, 56, 63, 80, 90, 107, 125, 160, 180.

Rated pressure up to 400 bar.

Maximum pressure up to 450 bar.

Open circuit.

Metric version.

Interchangeable with Rexroth pump.


Product Detail

Product Tags

A2FE series pump is a classic high-pressure pump/motor for all industry and mobile applications. Compact bent-axis design for a wide range of applications. It always offer you a high-pressure, wide displacement and reliable performance.

Features:

High pressure fixed pump.

For static transmission of Open circuit.

Fixed pump with axial tapered piston rotary group of bent-axis design.

For use in mobile and stationary applications.

The flow is proportional to the drive speed and displacement.

The drive shaft bearings are designed for the bearing service life requirements usually encountered in these areas.

High power density.

Small dimensions.

High total efficiency.

Economical design.

One-piece tapered piston with piston rings for sealing.

Weitai Axial Piston Motor

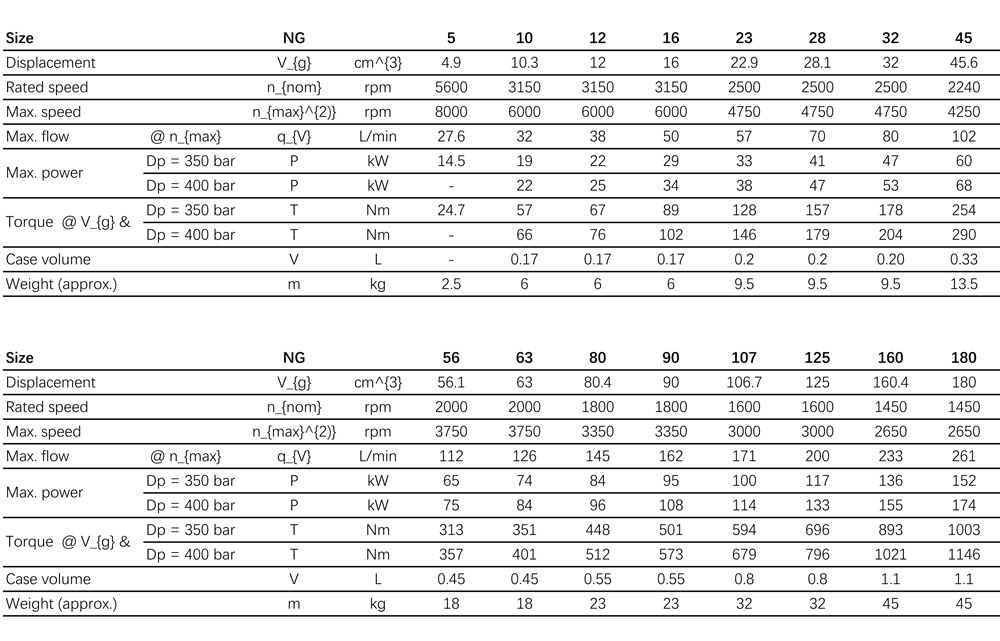

Parameters

A2FO.xlsx

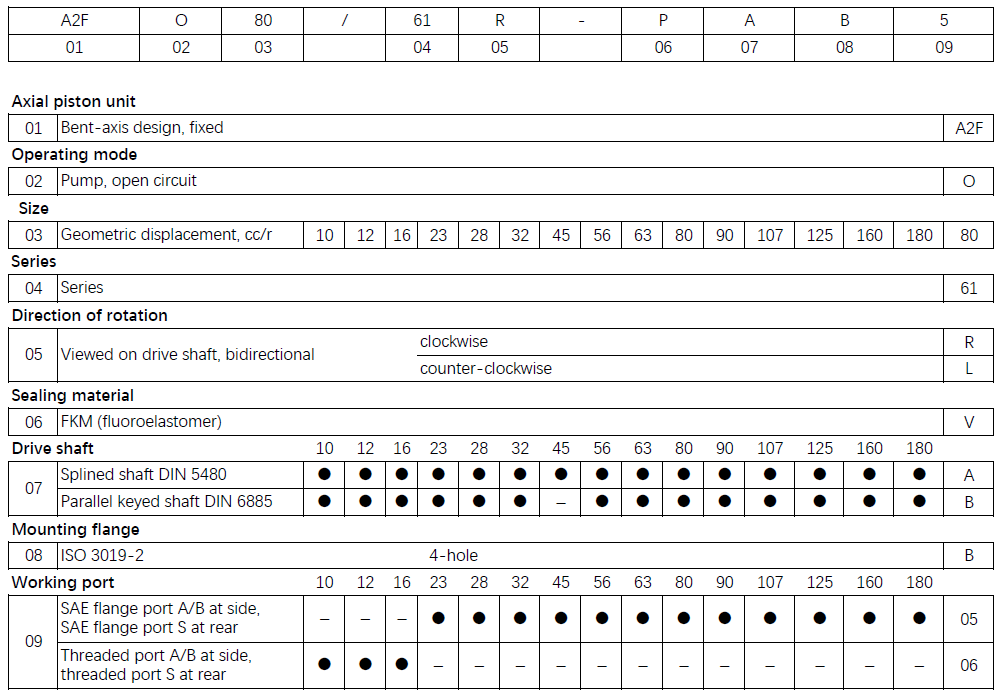

Ordering Code

A2FO code

Weitai Swash Plate Pump
Weitai Bent Axis Piston Pump
A2F motor manufacture
