2019 wholesale price China Excavator Travel Device Ec290bnlc Final Drive Ec290b Hydraulic Motor

Model No.: WTM-03
1.5-2.5 ton Mini Excavator Travel Motor.
OEM quality with One Year warranty.
Quickly delivery within 3 days (standard models).
Interchangeable with PHV-2B, MAG-18V-230, JMV016, 700-2C2K Travel Motors.


Product Detail

Product Tags

◎ Brief introduction

To be a result of ours specialty and repair consciousness, our corporation has won an excellent reputation amongst customers all around the entire world for 2019 wholesale price China Excavator Travel Device Ec290bnlc Final Drive Ec290b Hydraulic Motor, We have now experienced manufacturing facilities with a lot more than 100 workforce. So we could guarantee short lead time and top quality assurance.
To be a result of ours specialty and repair consciousness, our corporation has won an excellent reputation amongst customers all around the entire world for China Control Valve, Excavator Pump, Our items have been obtained more and more recognition from foreign clients, and established long term and cooperative relationship with them. We`ll supply the best service for every customer and sincerely welcome friends to work with us and establish the mutual benefit together.
◎ Video Display:

Model

Max Output Torque (Nm)

Max Working Pressure (Mpa)

Max Output Speed (r/min)

Applicable Tonnage(T)

WTM-03

2100

24.5

70

2-3T

WTM-03A

2900

24.5

50

2.5-3.5T

WTM-03 Final Drive is used for 1.5 Ton to 3.5 Ton Mini Excavator traveling.

1

•WTM-03 Travel Motor is interchangeable with PHV-2B, MAG-18V-230, 700-2C2K, 701 C2K, JMV016 Travel Motors.
•WTM-03A Travel Motor is interchangeable with PHV-3B, MAG-18V-350, 701 C2K, JMV016 Travel Motors.

Supply Ability 2000 Pieces/ Month
Applicable Industries Construction works, Energy & Mining, Machinery Repair Shops, Farms
Brand Name Weitai
Warranty 1 Year

◎ Lead Time

Quantity(Pieces) 1 - 10 11 - 100 >100
Est. Time(days) 2 20 Negotiable

◎ Features
•Integrated structure with Axial Piston Motor and Reducer.
•High reliability - all main parts are made by Automatic CNC producing line.
•High efficiency - the axial piston motor maintains high efficiency.
•Compact in volume and low noise.
•Two-speed function, exchange in high speed and strong torque.
•Parking brake - included as standard for safety
•Exchangeable: same flange dimensions with original final drive.

2

◎ Specifications

Model

WTM-03

WTM-03A

Motor Displacement

16/9 cc/r

18/12 cc/r

Working pressure

21 Mpa

21 Mpa

Speed control pressure

2~7 Mpa

2~7 Mpa

Ratio options

39

48.6 (53 optional)

Max. torque of Gearbox

2100 N.m

2900 N.m  (3188 N.m)

Max. speed of Gearbox

70 rpm

68 rpm

Machine application

1.5~2.5 Ton

2.5~3.5 Ton

◎ Connection

Model

WTM-03

WTM-03A

Frame connection diameter

150mm

165mm

Frame flange bolt

12-M10

11-M12

Frame flange P.C.D.

170mm

192mm

Sprocket connection diameter

160mm

190mm

Sprocket flange bolt

12-M10

11-M12

Sprocket flange P.C.D.

180mm

215mm (212mm)

Flange distance

40mm

50mm

Approximate weigth

28kg (60lbs)

40kg (90lbs)

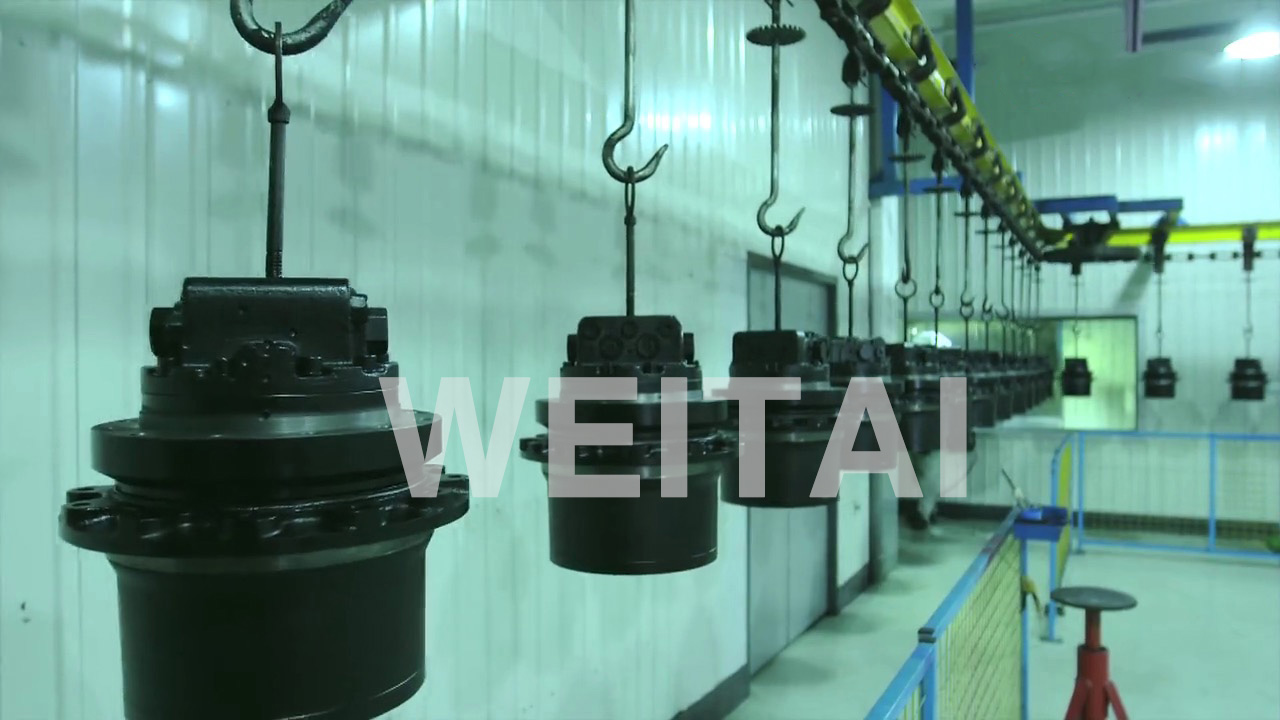

As your reliable OEM Travel Motor supplier, Weitai Hydraulic has high standard intelligent automatic machining workshop. All key parts are made by CNC machining centers imported from Japan. Dust-free assembling workshop keeps our core parts away from dust pollution. High accuracy inspection and testing laboratory ensures every parts and assembly are qualified. 100% testing and trail-run gives us confident for every Motor we delivered to our clients
